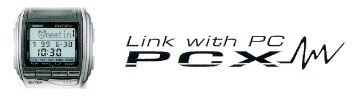

| Meet PCX - the futuristic wrist-worn data terminal that expands your data network to wherever your business takes you! A build-in infrared port lets you send data to and receive data from your computer. This means you can download personal information management (PIM) data and network data from a desktop computer and take it along with you wherever you go. You can even exchange schedule, memo, and owner data (owner name address, phone number, etc.) with another PCX watch quickly and easily. A 27-city World Time tells you the current time virtually anywhere around the globe. |
 |
 |
  |
PCSET-1  Resin / Stainless Steel |
 |
| Watch memory can hold a total of 9,728 bytes of data. Memory is
shared between the Telememo, Schedule, To Do, Owner, and Browser Modes. The following
table shows how many data items (records, appointments, tasks, or pages) can be stored in
each mode under various data conditions. - The maximum capacity of each mode is 8 Kbytes. - Note that the memory capacities in the table below are based on the premise that there is no data stored in any of the other modes. |
Data Configuration |
Approximate Number of Data Items |
|
| Telememo | Name: 8 characters (16 bytes) Telephone: 12 digits, one fields only (8 bytes) |
340 |
| Name: 10 characters (16 bytes) Telephone: 12 digits, one fields only (8 bytes) Fax: 12 digits, one fields only (8 bytes) Call: 12 digits, one fields only (8 bytes) e-mail: 32 characters (40 bytes) other: 10 characters (16 bytes) |
85 |
|
| Schedule | Category Icon, Date, and Time: 8 bytes Description: 15 characters (16 bytes) |
340 |
| Category Icon, Date, and Time: 8 bytes Description: 50 characters (56 bytes) |
128 |
|
| To Do | Category Icon, Priority, Date, and Time: 8 bytes Description: 15 Characters (16 bytes) |
340 |
| Category Icon, Priority, Date, and Time: 8 bytes Description: 50 Characters (56 bytes) |
128 |
|
| Browser Mode | Page Title: Downloaded from your computer Index: Downloaded from your computer Body Text: 127 characters |
|
| Owner Mode | Name: Up to 63 characters Tel 1, Tel 2: Up to 12 numbers, spaces, hyphens Fax 1, Fax 2: Up to 12 numbers, spaces, hyphens Call 1, Call 2: Up to 12 numbers, spaces, hyphens email address: Up to 63 characters Other: Up to 63 characters |
| *The Call 1 and Call 2 fields can be used
for call phone numbers, pager numbers, etc. *The Other fields can be used for miscellaneous information. |
| PAD-1 Adapter for infrared data communication between your PCX watch and computer. Connect the PAD-1 to your computer's 9-pin serial port and you are ready for infrared data communication with your PCX watch. |
|
|
*This adapter is not required for a laptop computer
with built in IrDA infrared port. Specifications
|
| System Requirements The following are the minimum requirements for installation and operation of PCX Watch Software.
*PCX is registered trademark of CASIO COMPUTER CO.,LTD. |
|
